外墻板系統

EXTERNAL WALL PANEL SYSTEM

產品說明 PRODUCT DESCRIPTION

外墻板采用3.0mm厚鋁板或蜂窩板，表面氟碳噴涂處理保證10年不退色。角碼錯縫安裝，板與板間之留10-15mm硅膠縫。

External Wall Panel adopts 3.0mm thickness aluminum or honey-comb panel, surface finish is PVDF coating can guarantee 10 years warranty. Corners are installed by staggered joints and the silicone seam is within 10-15mm between panels.

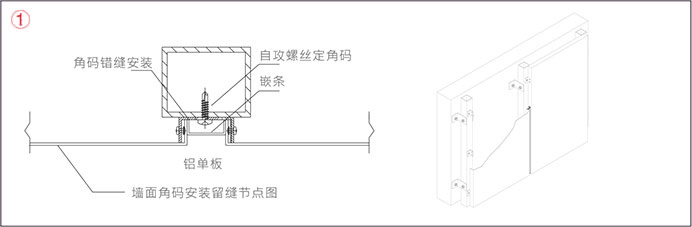

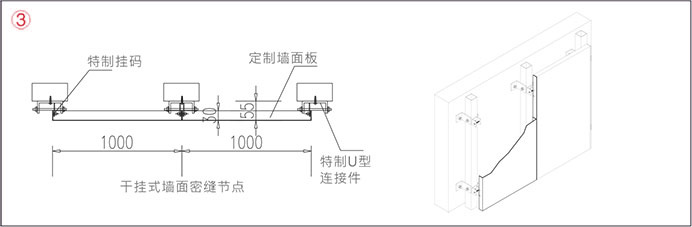

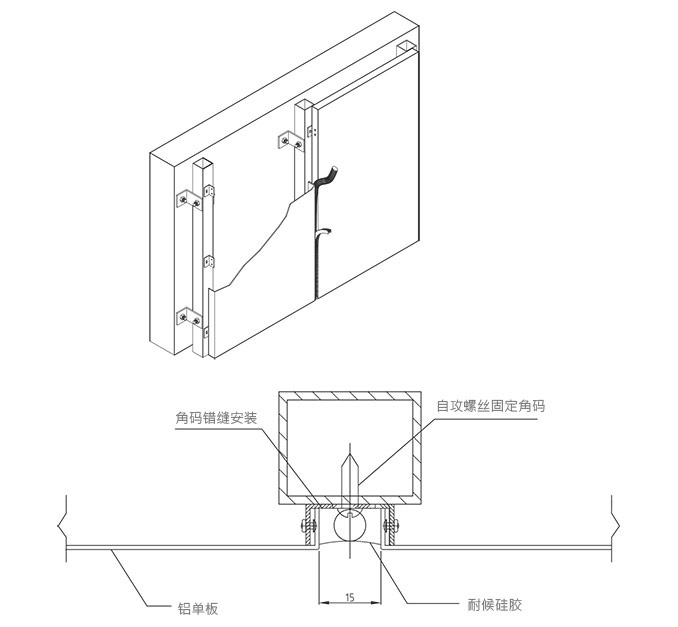

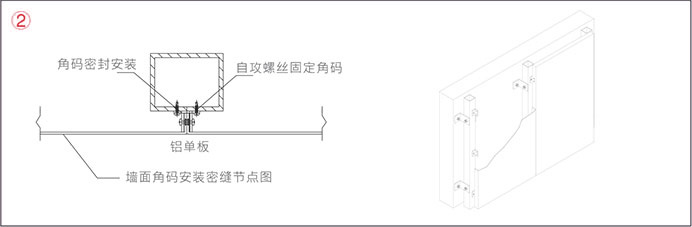

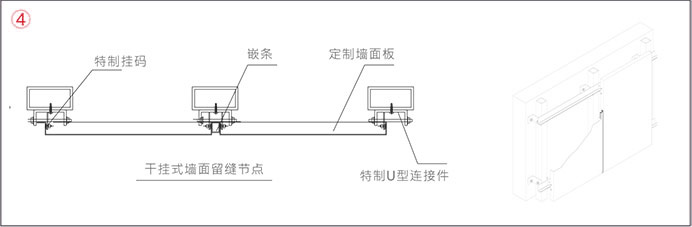

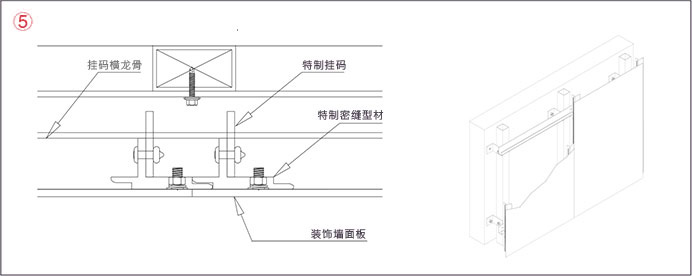

外幕墻立體示意圖 EXTERNAL CURTAIN WALL STEREO DETAIL

外墻板系統

EXTERNAL WALL PANEL SYSTEM

產品說明 PRODUCT DESCRIPTION

外墻板采用3.0mm厚鋁板或蜂窩板，表面氟碳噴涂處理保證10年不退色。角碼錯縫安裝，板與板間之留10-15mm硅膠縫。

External Wall Panel adopts 3.0mm thickness aluminum or honey-comb panel, surface finish is PVDF coating can guarantee 10 years warranty. Corners are installed by staggered joints and the silicone seam is within 10-15mm between panels.

內墻板系統

INTERIOR WALL PANEL SYSTEM

產品說明 PRODUCT DESCRIPTION

內墻鋁板一般采用2.0-3.0mm鋁板或1.0-1.5mm鋼板。表面多用粉末噴涂處理。
板面過大加筋種釘處理。圓弧板采用弧形加筋定位焊接。

Aluminum Interior Wall Panel adopts 2.0-3.0mm thickness aluminum or 1.0-1.5mm thickness steel, surface finish is PVDF coating. The panel should be handled by reinforcement and driven in a nail. The arc panel should be adopted fixed-position welding by arc-shaped reinforcement.

內墻示意圖 INTERIOR CURTAIN WALL STEREO DETAIL
